AHK 1
Detailed Information
| General Information | |
| Name | AHK 1 |
| Release Year | 2019 |
| Terms of Use | CC BY-SA 4.0 |
| Access Requirements | Create account |
| Dataset Size | 228 MB | Partial download is possible, i.e. the data is split into several files (e.g., epochs or data types) |
| Documentation | Only short description of the dataset, e.g., in the form of a few-sentence readme file or a text paragraph on the download page |
| Code | No |
| Applications | Analysis of geomorphological processes |
| Detailed Applications | Quantification of morphological changes |
| Acquisition | |
| Number of Scenes | 1 |
| Number of Epochs per Scene (minimum) | 2 |
| Number of Epochs per Scene (median) | 2 |
| Number of Epochs per Scene (maximum) | 2 |
| General Scene Type | Landscape |
| Specific Scene Type | Rock glacier |
| Location | Äußeres Hochebenkar (Austria) |
| Acquisition Type | Terrestrial laser scanning |
| Acquisition Device | RIEGL VZ-400 |
| Acquisition Platform | Tripod | Educated guess by the authors |
| Scan Interval | Years |
| Acquisition Months | Janurary: 0 February: 0 March: 0 April: 0 May: 0 June: 0 July: 2 August: 0 September: 0 October: 0 November: 0 December: 0 |
| Representation | |
| Data Representation | Unstructured, globally aligned (e.g., point cloud or ray cloud) |

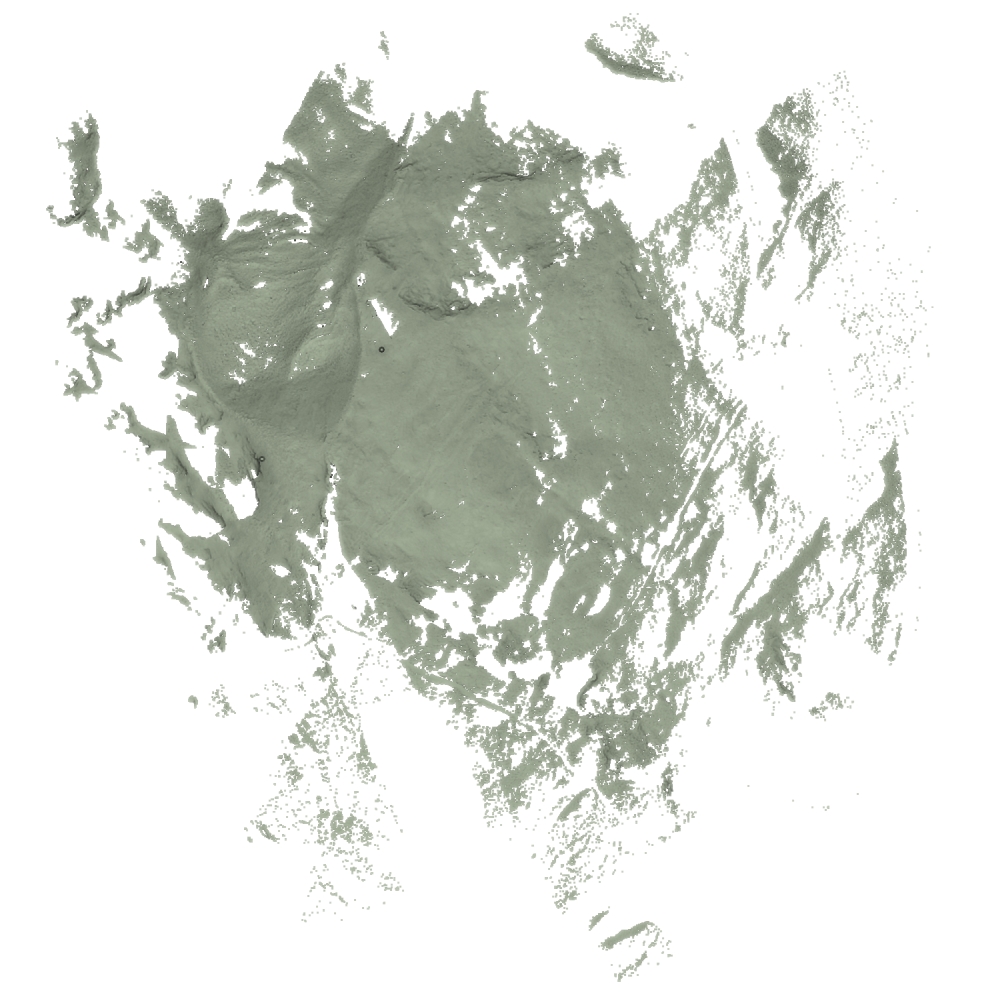

| Specific Data Representation | Point cloud |
| File Format/Encoding | Textfile, usually delimiter separated values |
| Raw Data | - |
| Additional Data | Scanner positions |
| Coordinate System | 25832 |
| Quality and Usability | |
| Registration | Finely registered |
| Number of Partial Epochs | 100.00% |
| Unusable Data Reason | - |
| Splits | No |
| Per-Point Attributes | |
| Intensity/Reflectivity | No |
| Color | No |
| Semantic Labels | - |
| Instance Labels | No |
| Change Labels | - |
| Statistics | |
| Number of Points per Epoch (minimum) | 9M |
| Number of Points per Epoch (median) | - |
| Number of Points per Epoch (maximum) | 17M |
| Avg. Point Spacing (minimum) | 5.7cm |
| Avg. Point Spacing (median) | - |
| Avg. Point Spacing (maximum) | 9.8cm |
| Avg. Change Points per Epoch | - |
Paper Reference 1
@article{rutzinger2016innsbruckssar2015,
author = {Rutzinger, M. and H\"ofle, B. and Lindenbergh, R. and Oude Elberink, S. and Pirotti, F. and Sailer, R. and Scaioni, M. and St\"otter, J. and Wujanz, D.},
title = {CLOSE-RANGE SENSING TECHNIQUES IN ALPINE TERRAIN},
journal = {ISPRS Annals of the Photogrammetry, Remote Sensing and Spatial Information Sciences},
volume = {III-6},
year = {2016},
pages = {15--22},
doi = {10.5194/isprs-annals-III-6-15-2016},
}
Dataset Reference 1
@misc{pfeiffer2019datasethochebenkar1,
author = {Jan Pfeiffer and Bernhard H\"ofle and Martin H\"ammerle and Vivien Zahs and Martin Rutzinger and Marco Scaioni and Roderik Lindenbergh and Sander Oude Elberink and Francesco Pirotti and Magnus Bremer and Daniel Wujanz and Thomas Zieher},
title = {Terrestrial laser scanning data of the \"Au\sseres Hochebenkar rock glacier close to Obergurgl, Austria acquired during the Innsbruck Summer School of Alpine Research},
year = {2019},
doi = {10.1594/PANGAEA.902042},
organization = {Institute of Geography, University of Innsbruck},
type = {dataset},
publisher = {PANGAEA},
}
